In this week’s System Design Codex, we cover two important topics related to a microservices architecture

• Circuit Breaker

• Service Discovery

---

Circuit Breaker

This happened a couple of years ago.

It was a fine Monday morning when our mailboxes erupted with angry alerts.

One of the backend services managed by our team was going down.

Upon investigation, we discovered that one of the 3rd party APIs we integrated with had been unsubscribed from existence.

Since our service took the 3rd party response and called other services, we were creating a flood of downstream failures.

The doctor informed me that this condition was called Cascading Failure.

Very helpful!

After a few calls and escalations, the 3rd party service was brought back to life. But the failure kept re-occurring every few days.

That’s when we decided to do something about it.

We implemented the Circuit Breaker pattern.

You can play around with the diagram on Eraser.io

With this pattern, you define a threshold value for the number of failures between two services.

A proxy sits between the two services and monitors the number of failures.

If the number crosses the threshold, the proxy stops letting any more requests go through.

Also, it lets you configure a fallback response.

In our case, the fallback response was easy because the 3rd party API returned a list of offers. In the absence of a response, it was feasible to go with a basic list of offers.

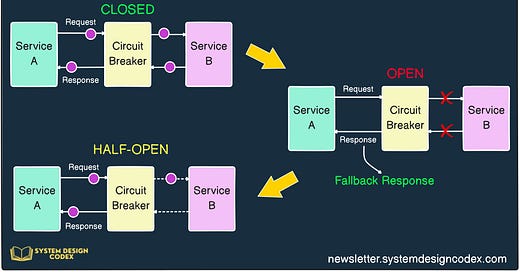

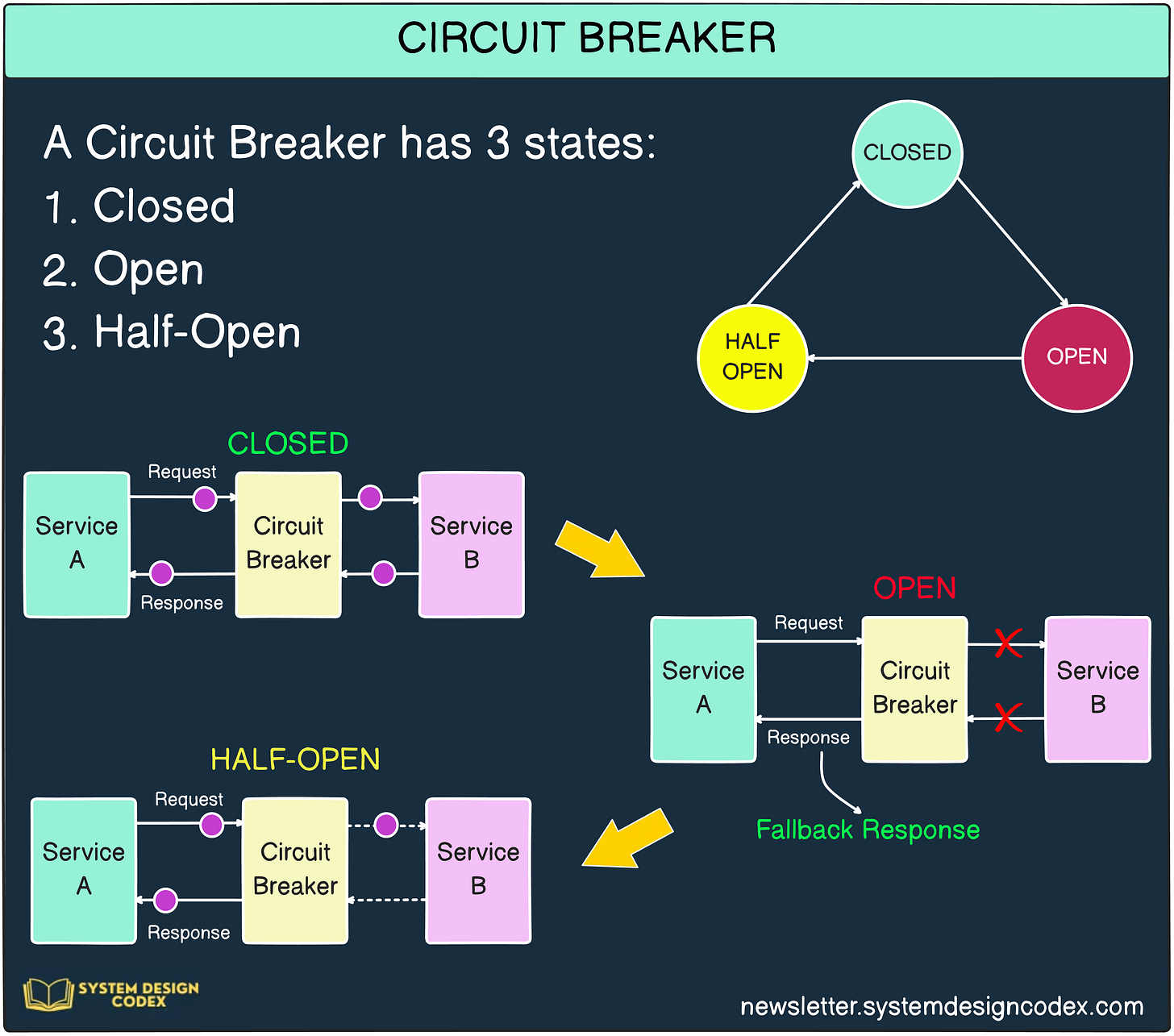

So - how does the Circuit Breaker work?

It has 3 stages:

👉 Closed State

This is the initial state and the services talk to each other without any issues.

The proxy keeps monitoring the number of failures within a defined period.

👉 Open State

If failures go beyond the threshold, the circuit breaker shifts to the Open state.

The communication between services is blocked and fallback response is returned.

👉 Half-Open State

The circuit breaker allows a limited number of requests to go through.

If they are successful, the circuit breaker switches back to the Closed State

How do you implement the Circuit Breaker pattern?

Though we implemented it using Netflix Hystrix for Spring Boot, there are libraries available in all major ecosystems.

• Resilience4J for the Java ecosystem

• Opposum for Node.js

• Pybreaker for Python

• Polly for .NET

Have you used the Circuit Breaker pattern?

---

Service Discovery

You can’t call a person without knowing their phone number.

The same goes for calling a service.

Traditionally, applications used to run on specific and fixed locations. It wasn’t uncommon to hear conversations like this:

“Just call the service on the box with IP address 172.16.0.1”

“Ya, the one I deployed yesterday. It should work fine.”

It’s easy to keep track of things like this if your entire application is deployed on a fixed location.

But you can’t do that when your application is divided into multiple services deployed on cloud infrastructure.

Suddenly, there are no fixed network locations.

The number of service instances can go up and down depending on the auto-scaling configuration in place.

This is where the Service Discovery Pattern comes into the picture.

You can play around with the diagram on Eraser.io

There are 3 parties involved in the Service Discovery Pattern:

• Service Registry - a centralized server that maintains a global list of network locations of all services

• Client - the entity that needs to call a service

• Service - the actual service registered with the Service Registry

Here’s how the pattern works on a high level:

1. When a service comes up, it registers its location with the Service Registry.

2. The client looks up the relevant service locations in the Service Registry.

3. The Service Registry returns the location of the required service.

4. The client makes a call to the service.

Of course, this is a simplified view of the process.

But it helps to give an idea.

Of course, it’s not like the Service Discovery Pattern has no issues.

• The frequent lookups for service destinations can increase network traffic and lead to higher latency.

• Service Registry can become a single point of failure.

• If you go with multiple instances of the registry, you need to worry about the consistency of the registration data across all instances

• Dealing with failing service instances can be a problem

Having said that, Service Discovery has grown in usage over the years.

Some prominent Service Registry examples are as follows:

• Netflix Eureka

• Consul

• Apache Zookeeper

• Kubernetes Service Discovery

In fact, DNS is also a form of service discovery

So - have you used the Service Discovery pattern?

---
