Essential Components of a Production Level Microservice Application

A Detailed Look

Microservices have transformed how we build scalable, modular applications. Instead of a single, tightly coupled codebase, a microservices architecture splits the system into small, independently deployable services—each responsible for a specific business function.

But building a production-ready microservice application is not just about writing code for each service. It requires a thoughtful combination of infrastructure, communication patterns, monitoring, and security. Below are the essential components you’ll typically find in any robust microservices setup.

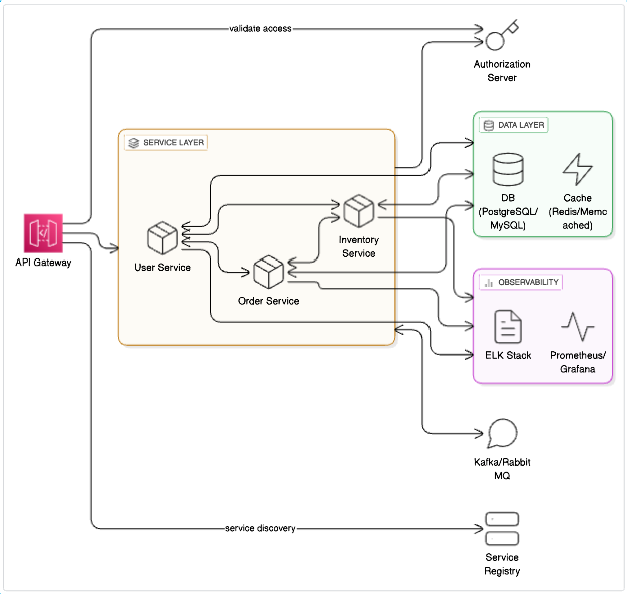

You can play around with the diagram on Eraser.io

1 - API Gateway: The Single Entry Point

In a monolithic app, the client talks directly to the server. But with microservices, there are many services. This is where an API Gateway comes in.

• It acts as the unified entry point for external clients (web, mobile, third-party APIs).

• It handles request routing, load balancing, SSL termination, caching, rate limiting, and sometimes authentication.

• Tools like Kong, AWS API Gateway, NGINX, and Spring Cloud Gateway are commonly used.

By decoupling client communication from internal services, the gateway simplifies security, reduces cross-cutting concerns in each service, and improves maintainability.

2 - Service Registry and Discovery: The Dynamic Directory

In a dynamic microservices world, where services may scale up/down or move to different machines, hardcoding IPs or URLs isn’t sustainable.

That’s why you need a Service Registry like:

• Consul

• Eureka

• Apache Zookeeper

Each service registers itself with the registry. When another service (or the API gateway) wants to communicate, it queries the registry to discover where that service currently lives.

This enables auto-scaling, health checks, and resilient service-to-service communication.

3 - Service Layer: The Core Business Logic

Each microservice is a self-contained unit that performs one business task—like user management, payments, or product inventory.

These services are typically built using frameworks like:

• Spring Boot (Java/Kotlin)

• NestJS (TypeScript)

• Go Micro, .NET Core, Django REST, etc.

They communicate over REST, gRPC, or messaging protocols, and are independently deployable and testable. This separation ensures agility, team autonomy, and better scaling.

4 - Authorization Server: Securing the Services

Security is essential—especially when multiple services talk to each other and expose APIs externally.

A dedicated authorization server helps:

• Manage identity (users, roles, scopes)

• Issue and validate access tokens (JWT, OAuth2)

• Enforce access control policies

Popular tools include:

• Keycloak

• Okta

• Auth0

• Azure AD

This ensures that only authorized users or services can interact with sensitive endpoints, reducing the attack surface.

5 - Data Storage: Tailored to Each Service

In microservices, each service should own its own database—a principle called Database per Service.

This avoids tight coupling and enables teams to:

• Choose the most suitable storage engine (e.g., PostgreSQL for relational data, MongoDB for document-based data)

• Evolve schemas independently

• Maintain service boundaries

However, it also means embracing eventual consistency and using asynchronous messaging to sync data when needed.

6 - Distributed Caching: Performance Booster

To avoid redundant database queries and speed up response times, services can use in-memory caches like:

• Redis

• Memcached

• Couchbase

Caches are especially useful for:

• Frequently accessed data (e.g., product catalogs, access tokens)

• Session storage

• Rate-limiting or token validation

Caching helps reduce latency and eases load on backend systems, but must be managed carefully to avoid stale data issues.

7 - Asynchronous Communication: Event-Driven Systems

Not every service interaction should be synchronous. For tasks like:

• Sending notifications

• Logging analytics events

• Processing transactions in stages

You can use asynchronous communication via message brokers like:

• Apache Kafka

• RabbitMQ

• Amazon SNS/SQS

This decouples services, improves fault tolerance, and allows services to process messages at their own pace, making the system more resilient.

8 - Metrics Collection and Visualization: Observability Starts Here

You can’t fix what you can’t measure.

Each microservice should emit metrics like request counts, error rates, and latency. These are collected and visualized via:

• Prometheus (metrics collection)

• Grafana (dashboards and alerts)

This helps teams:

• Understand performance trends

• Set SLAs

• Alert on anomalies (e.g., spike in 500 errors or latency)

Observability is key in a distributed system to detect and debug issues quickly.

9 - Log Aggregation and Visualization: Know What Happened and When

Logs are the first line of defense when things go wrong.

Since microservices often run in containers or across many instances, logs must be centralized. A common setup includes:

• Logstash (collects and processes logs)

• Elasticsearch (stores them)

• Kibana (visualizes logs)

This ELK Stack allows developers and SREs to search, analyze, and trace request flows across services.

So - what else will you add to your microservice architecture?

---
