Essential Components of a Production-Ready Web Application

A Detailed Look

Building a web application in a development environment is one thing. But running it reliably in production, where real users depend on performance, scalability, and uptime, is a whole different challenge.

A modern production web application is more than just code deployed to a server—it’s a carefully designed ecosystem with various tools and components working together to ensure speed, resilience, observability, and scalability.

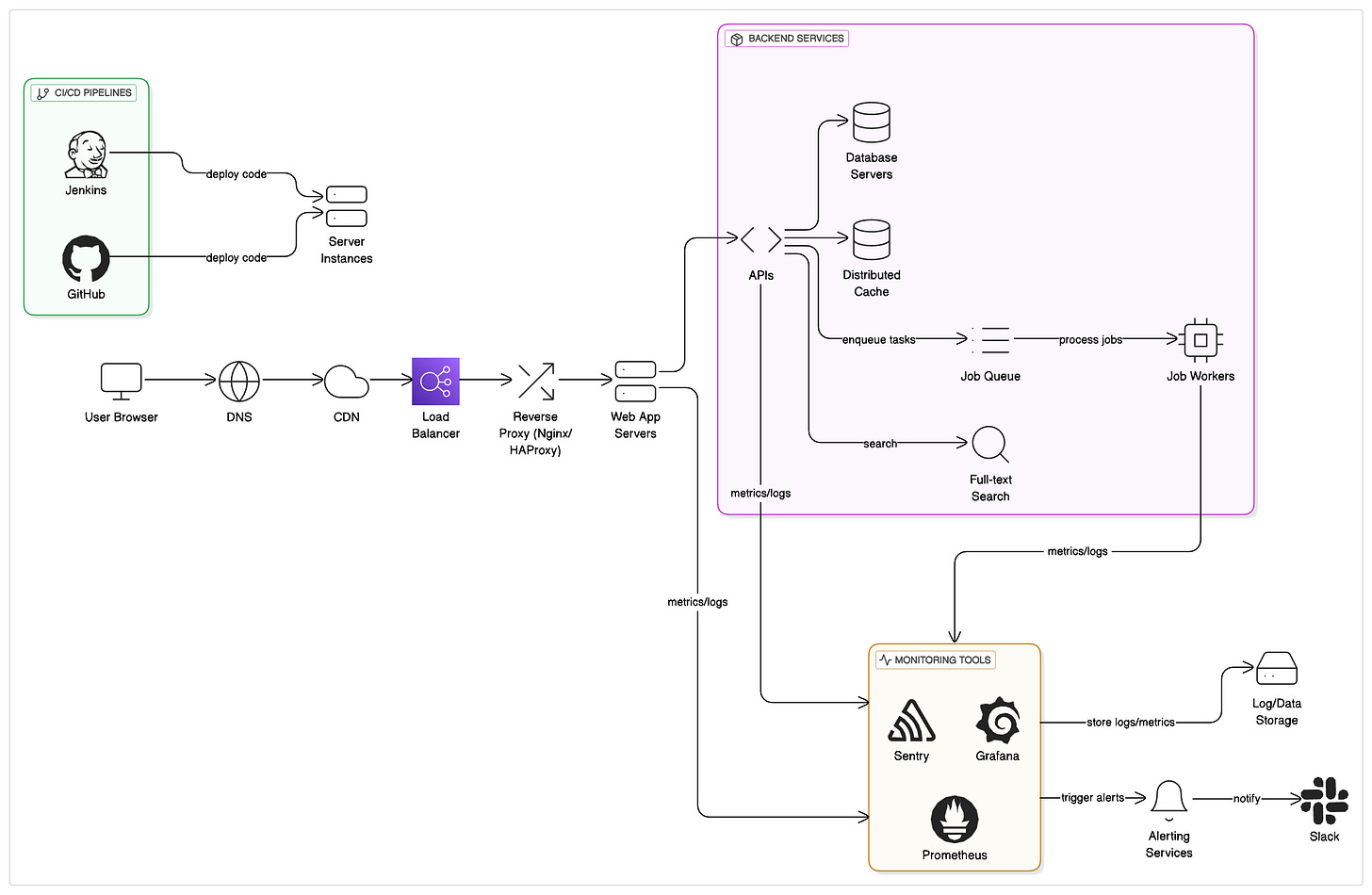

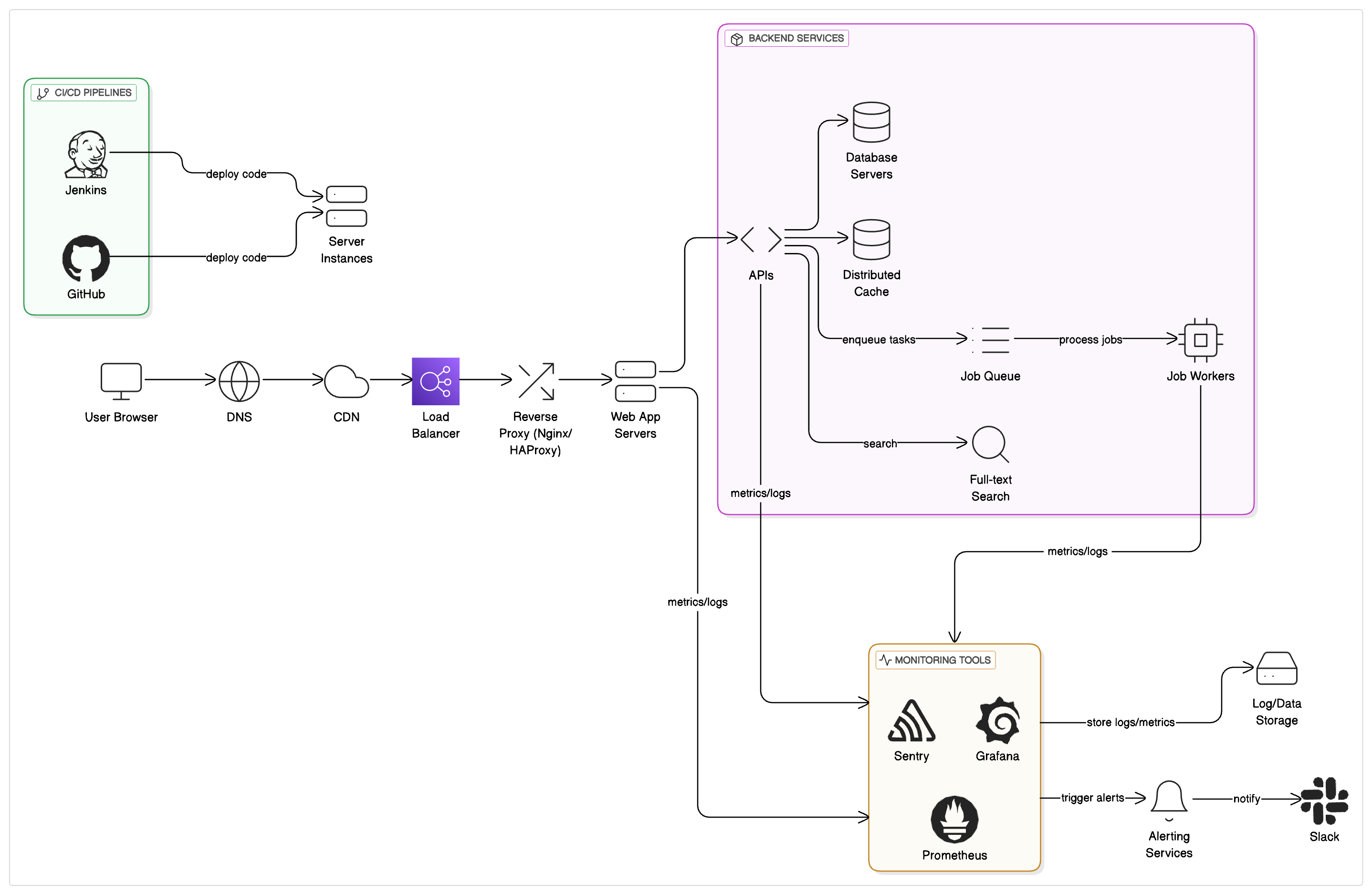

Here’s a breakdown of the essential components that make up a production-grade web application.

You can play around with the diagram on Eraser.io

1 - CI/CD Pipelines

Every production-ready system starts with Continuous Integration and Continuous Deployment (CI/CD) pipelines.

• CI automates code testing, linting, and merging to ensure only high-quality code enters the main branch.

• CD ensures that the latest version of the app can be reliably and repeatably deployed to production servers.

Tools like GitHub Actions, Jenkins, GitLab CI, and CircleCI help automate the full pipeline—from code commit to deployment—reducing human error and accelerating release cycles.

📌 Bonus: You can also add blue/green deployments or canary rollouts to minimize deployment risk.

2 - Client Requests and DNS Resolution

Everything starts with a user in a web browser entering a domain like example.com.

• The browser performs DNS resolution to find the IP address of your app server.

• Once resolved, the request travels over the internet to your server infrastructure.

This initial handshake is critical—it’s where performance optimizations like DNS caching and HTTP/2 can shave off precious milliseconds.

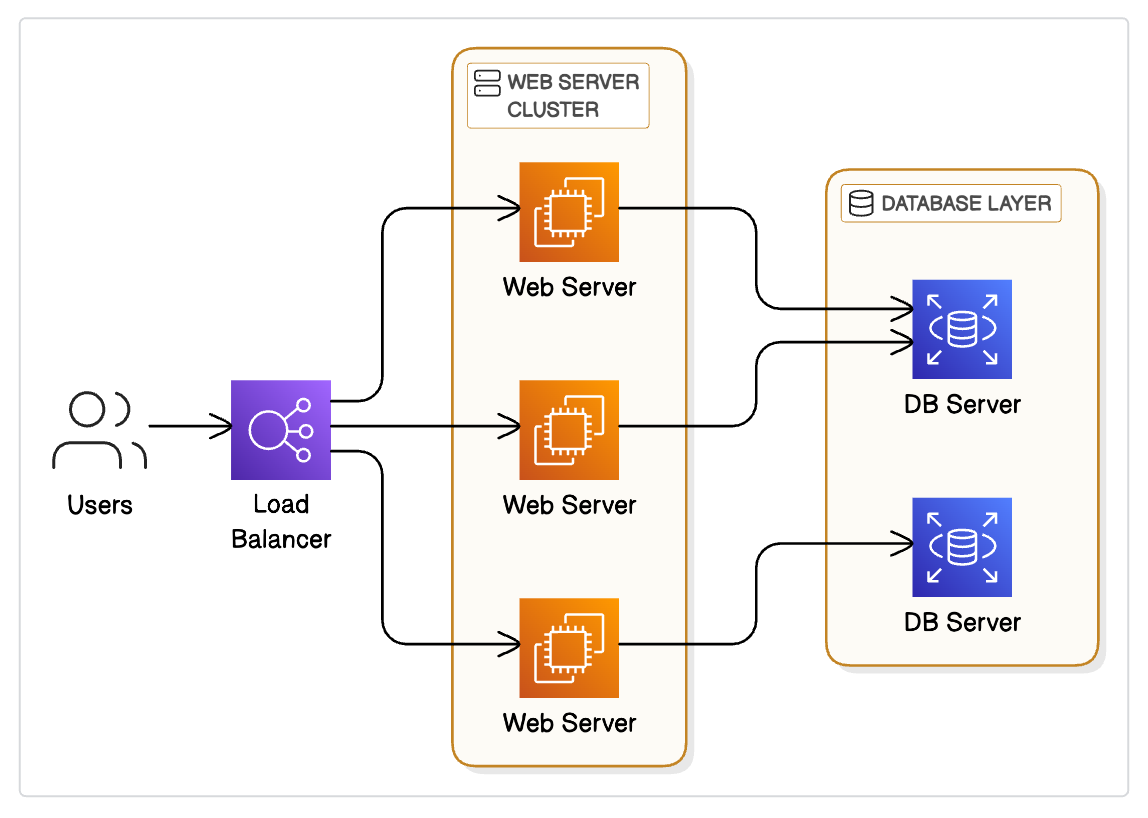

3 - Load Balancers and Reverse Proxies

When traffic hits your infrastructure, it passes through a load balancer or reverse proxy (like Nginx, HAProxy, or AWS ALB).

• These tools distribute incoming requests across multiple application servers to ensure high availability and avoid overloading any single instance.

• They also handle SSL termination, URL rewriting, and sometimes even basic caching.

In a distributed architecture, load balancing is essential for scalability and fault tolerance.

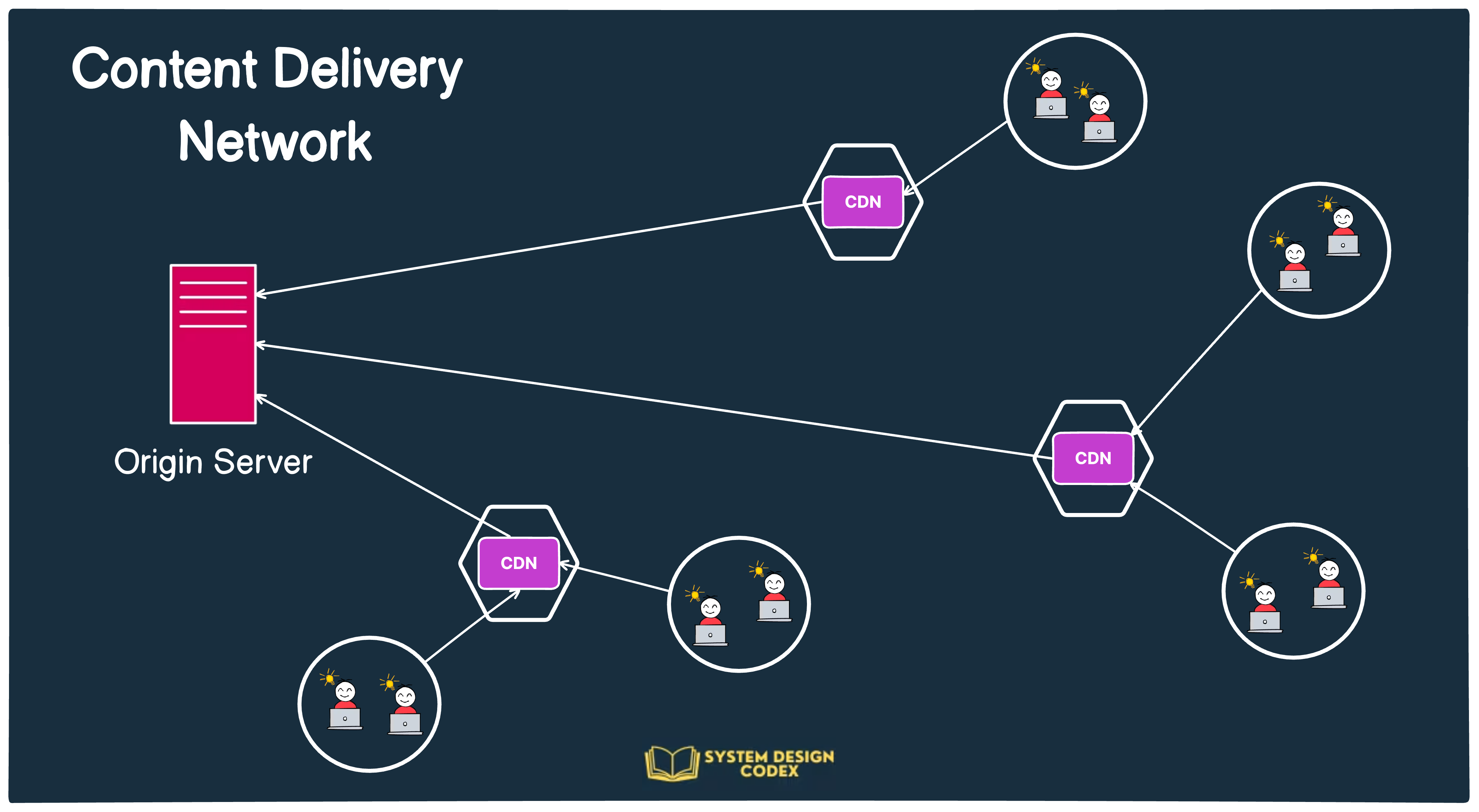

4 - Content Delivery Network (CDN)

For serving static assets (like images, CSS, JavaScript, fonts), modern apps rely on CDNs such as Cloudflare, Akamai, or AWS CloudFront.

You can play around with the diagram on Eraser.io

• CDNs cache content on edge servers close to users, reducing latency and load on your origin servers.

• They also add security layers like DDoS protection, WAFs (Web Application Firewalls), and TLS encryption.

Your app feels faster, especially for users across different geographies.

5 - API Layer for Business Logic

Modern web applications are often split between frontend and backend. The frontend communicates with the backend through RESTful or GraphQL APIs.

You can play around with the diagram on Eraser.io

• These APIs handle authentication, business logic, user data, and session management.

• They act as the interface between the web app and core backend services, often sitting behind versioning, rate limits, and authentication layers like OAuth or JWT.

A well-structured API layer makes your app modular and scalable.

6 - Databases and Distributed Caches

To serve dynamic content, your application needs to fetch and store data efficiently.

• Databases (like PostgreSQL, MySQL, or MongoDB) store persistent data.

• Distributed caches (like Redis or Memcached) hold frequently accessed data in memory for rapid retrieval.

Using caching for session storage, search results, or product listings can reduce database pressure and improve user experience.

7 - Job Queues and Background Workers

Some tasks don’t need to happen during the user’s request-response cycle. These include:

• Sending emails

• Generating reports

• Processing images

• Syncing data with external APIs

Instead of delaying the user, these tasks are pushed to a job queue (like RabbitMQ, Sidekiq, Celery, or Bull) and picked up by background workers for processing.

This keeps your app fast and responsive while handling heavy lifting asynchronously.

8 - Search Services

If your application supports search—like product search in e-commerce or user-generated content—you’ll need full-text search engines such as Elasticsearch or Apache Solr.

• These services index your data in real-time.

• They support fuzzy search, autocomplete, faceted search, and ranking.

A dedicated search service provides richer search experiences and better performance than SQL LIKE queries.

9 - Monitoring and Observability

When your app is live, you need to know what’s happening under the hood—from response times to error rates.

Monitoring tools like:

• Grafana (dashboards)

• Prometheus (metrics collection)

• Sentry (error reporting)

• Datadog or New Relic (APM)

...provide real-time insights into your app’s health, usage patterns, and performance bottlenecks.

Good observability helps you catch issues early before they affect users.

10 - Alerting and Incident Management

When something does go wrong, the right people need to know immediately.

• Alerting tools like PagerDuty, Opsgenie, or Slack integrations send notifications based on thresholds (e.g., CPU > 90%, 5xx errors > 5%).

• Developers or DevOps teams are alerted automatically and can start resolution quickly.

Fast alerts = faster response = reduced downtime.

So, what else will you add to the list?

---
